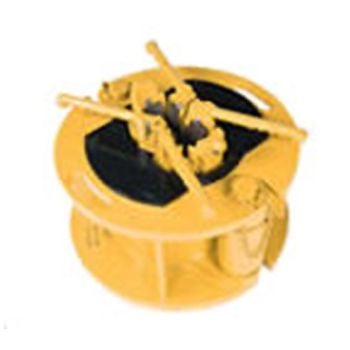

Spiders

Item Code: 8393

All spiders are designed for heavy or medium duty use. The spider and slip are made of alloy steel and heat treated for strength and wear resistance. All spiders come with certification. Data books are available upon request.

Description

Dual Spider
	The Dual Spider is designed to run dual strings of tubing at the same time or a single string at one time. It is capable of running any two different sizes or the same two sizes at the same time. Size Range: 1" through 2 7/8" Rated Capacity: 100 tons

Air/ Hydraullic Tubing Spiders
	Designed for heavy duty use. It has a size range of 1.315″ through 5 1/2″ by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.

API Bowl
	The Forum API Bowl has the same bore and taper (4″ per ft.) as the API #3 split bowl. All API drill collar, drill pipe, and casing slips can be used in this bowl. Size Range: 2 1/16″ through 10″ Flush Joint Rated Capacity: 100 tons

Hinged Casing Spider
	The 13 3/8″ through 30″ Hinged Casing Spiders have a working capacity of 200 tons. Size Range: 2 3/8″ through 30″

Manual Tubing Spider
	3 1/2″ Manual Tubing Spider - The 3 1/2″ Tubing Spider and Slip assembly can handle tubing sizes 3/4″ through 3 1/2″ OD by changing the nine removable inserts. Rated for 100 ton capacity.
	4 1/2″ Manual Tubing Spider - The 4 1/2″ Spider and Slip uses the 4 1/2″ DU Rotary Slip insert and has a range of 1″ through 4 1/2″ OD by changing the twelve inserts. Rated for 100 ton capacity.
	5 1/2″ Manual Tubing Spider - The 5 1/2″ Spider and Slip uses the 5 1/2″ DU Rotary Slip insert and has a range of 2 3/8″ through 5 1/2″ OD by changing the twelve inserts. Designed to run the Reda or Kobe cable. Rated for 100 ton capacity.

Elevator Spiders
	Unique Features: Increased link range: 500 ton frames can now use 350T, 500T, 750T and 1000T links Unit is fully assembled and plumbed from the top, greatly increasing repair and assembly safety Improved cover-to-body safety sling location Components and slips are interchangeable with Varco CES Size: Frame 1 = 350 ton, 4 ½” - 14” Frame 2 = 500 ton, 4 ½” - 14” Frame 3= 500 ton, 16” - 24” Forum offers the following B+V Oil Tools Spider/Elevator Systems: BVE/S-250 ton, range 2 3/8" - 7 5/8" (manual/air/hydr) BVE/S-350 ton, range 4 1/2" - 14" (manual/air/hydr) BVE/S-500 ton, range 4 1/2" - 14" (air/hydraulic) BVE/S-500 ton, range 12 3/4" - 24" (air/hydraulic) BVE/S-750 ton, range 4 1/2" - 14" (air/hydraulic) BVE/S-750 ton, range 16" - 24" (air/hydraulic) PSE-1000 ton, range 2 3/8" - 22" (hydraulic)

Elevator Spiders

Unique Features:

Increased link range: 500 ton frames can now use 350T, 500T, 750T and 1000T links
Unit is fully assembled and plumbed from the top, greatly increasing repair and assembly safety
Improved cover-to-body safety sling location
Components and slips are interchangeable with Varco CES

Size:

Frame 1 = 350 ton, 4 ½” - 14”
Frame 2 = 500 ton, 4 ½” - 14”
Frame 3= 500 ton, 16” - 24”

Forum offers the following B+V Oil Tools Spider/Elevator Systems:

BVE/S-250 ton, range 2 3/8" - 7 5/8" (manual/air/hydr)
BVE/S-350 ton, range 4 1/2" - 14" (manual/air/hydr)
BVE/S-500 ton, range 4 1/2" - 14" (air/hydraulic)
BVE/S-500 ton, range 12 3/4" - 24" (air/hydraulic)
BVE/S-750 ton, range 4 1/2" - 14" (air/hydraulic)
BVE/S-750 ton, range 16" - 24" (air/hydraulic)
PSE-1000 ton, range 2 3/8" - 22" (hydraulic)
