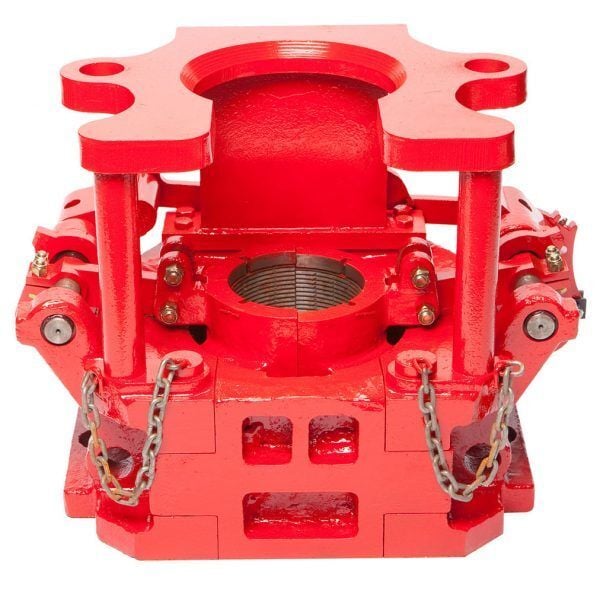

Model E
Item Code: 9074
Specifications
| Rating: | 350,000 lbs. (175 tons) |
|---|---|
| Material: | Alloy Steel - Heat Treated |
| Weight with Door (Less Slip Bodies): | 945 lbs. (428 kg) |
| Height (To Top of Guard): | 21-1/2” (546 mm) |
| Base Dimensions: | 24” (610 mm) x 23.5” (596 mm) |
| Bolt Centers: | 17” (432 mm) to 21” (533 mm) |
| Gate Opening: | 7-1/2” (190 mm) |
| Bowl Opening: | 9-1/8” (232 mm) |
| Hydraulic Operating Pressure: | 300 to 500 PS (20.7 to 34.5 Bar) |
| Pneumatic Operating Pressure: | 90 to 120 PSI (6.2 to 8.3 Bar) |
| Pipe Range: | 2-3/8” to 7-5/8” (60 mm to 194 mm) |
| Door Weight: | 85 lbs. (38 kg) |
