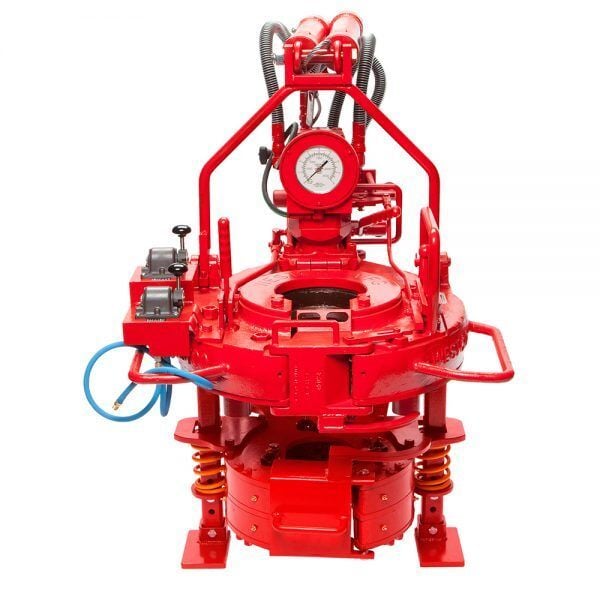

Model 57801
Item Code: 9048
Specifications
| Maximum RPM: | 35 GPM (132.5 LPM) |
|---|---|
| Rotation Speed: | High Gear: 100 RPM Low Gear: 26 RPM |
| Make-Up Torque: | 4,650 ft-lbs (642 kg-m) (Low Gear, 2,000 PSI, 140.6 kg/sq. cm) |
Dimensions
- Length: 43” (109.22 cm)
- Height: 26” (66.04 cm)
- Weight: 620 lbs. (281.2 kg)
- Width: 31” (78.74 cm)
- Arm Length: 29” (73.66 cm)
| Specifications: | 57801 |
|---|---|
| Pipe Size Range: | 1.05” to 5-1/2” (26.6 mm to 139.7 mm) |
| Torque ft-lb/Nm Low Gear @ 250 PSI (172 Bar): | 12,680 ft-lbs (17,191 Nm) |
| Rated Speed High Gear @ 30 GPM (114 LPM): | 67 RPM |
| Torque Arm Length: | 23” (584 mm) |
| Nominal Power Requirements: | 2,000 PSI (30 GPM) |
| Back-Up Type: | Manual M/S | Pneumatic/Hydraulic |
|---|---|---|
| Pipe Size Range: | 1.05” to 4-1/2” (26.6 mm to 114.3 mm) | 1.05” to 5-9/16” 26.6 mm to 141.3 mm) |
| Weight: | 53 lbs (24 kg) | 148 lbs (67.1 kg) |
WESTCO's Model M57801 Gear Drive Tubing Tong features:
- Safety Lock
- Front Guard
- High Torque
- Light Weight / Easy Handling
- Low Maintenance Design
- Proven Durability
Options
- Torque Load Cell
- Hydraulic Back-up
- Pneumatic Back-up
