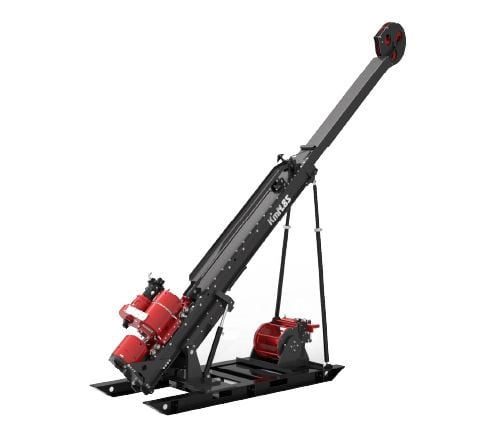

 "KMN.8S - Versadrill - Surface")
KMN.8S - Versadrill - Surface
Item Code: KMN.8S
Its modular conception makes it easily adaptable.
FEATURES AND BENEFITS
- Surface version (also available in underground version)
- Heliportable
- Made of steel (aluminium in option)
- Depth capacity: 800 m (2 625 ft) N size
- Total weight: 2 501.27 lb (10,660 kg)
SPECIFICATIONS
| Rotary head and chuck | |
|---|---|
| Holding capacity: | 28 000 lb (12 700 kg) |
| Spindle interior dimension: | 4.9" (124 mm) PWL Rod |
| Chuck operation: | Spring closed and hydraulically opened |
| Final drive: | HV 60-2 chain in an oil bath |
| Hydraulic Motor: | 80 cc variable |
| Transmission: | HI-LO 2-speed mechanic |
| Rotary Head Ratio: | 1:2 |
| Lubrication: | Pump pressurised, filter and cooler |
| Speed: | 0 to 1300 RPM |
