 "KMN.1.4U - Versadrill - Underground")

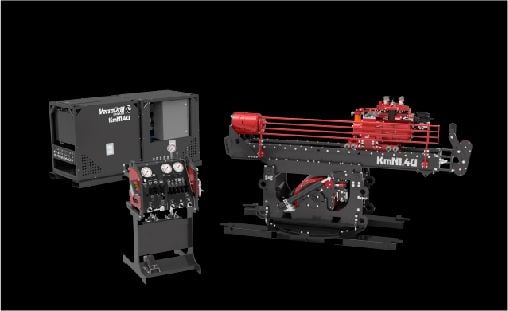

KMN.1.4U - Versadrill - Underground
Item Code: KMN1.4U
Achieve the most out of your underground application.
FEATURES AND BENEFITS
- Costs 50% less than the competition
- Save time and keep drilling from awl to pwl with the same head
- Compatible with most drill
- Quiet, no vibration and water resistant
SPECIFICATIONS
| Rotary head and chuck | |
|---|---|
| Holding capacity: | Option available at over 35,000 lbs (15,875 kg) |
| Spindle interior dimension: | 4.9" (124 mm) |
| Chuck operation: | Spring closed and hydraulically opened |
| Final drive: | HV 80-3 chain in an oil bath |
| Hydraulic Motor: | 160 cc variable |
| Transmission: | Several options available |
| Rotary Head Ratio: | 1:2.33 |
| Lubrication: | Pump pressurised, filter and cooler |
| Fabrication: | Aluminium and steel (steel-only optional) |
| Speed: | 0 to 1,250 RPM |
| Weight: | 14,269 lbs (6,474kg) |
