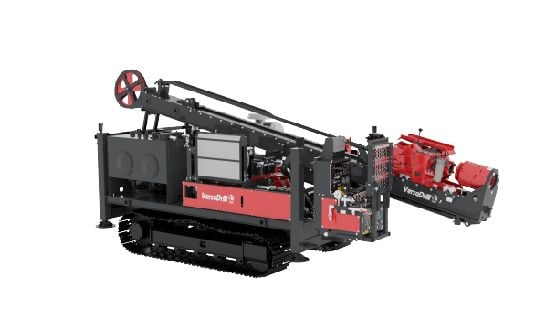

 "KMN.1.4SM Versadrill - Mobile")
FEATURES & BENEFITS
- Design optimised for surface operation with low ground pressure
- Depth capacity: 1,400m (4,600 ft) N size
- Total weight: 23,450 lbs (10,660kg)
SPECIFICATIONS
| Rotary head and chuck | |
|---|---|
| Holding capacity: | 38 000 lb (17,236 kg) |
| Spindle interior dimension: | 4.9" (124 mm) PWL Rod |
| Chuck operation: | Spring closed and hydraulically opened |
| Final drive: | HV 80-3 chain in an oil bath |
| Hydraulic Motor: | 160 cc variable |
| Transmission: | HI-LO 2-speed mechanic |
| Rotary Head Ratio: | 1:2.33 |
| Lubrication: | Pump pressurised, filter and cooler |
| Speed: | 0 to 1250 RPM |
