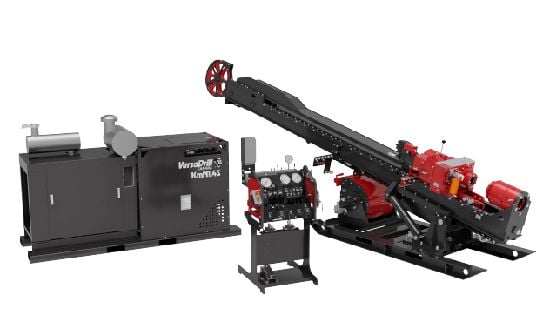

KMN.1.4S Versadrill - Surface
Item Code: KMN1.4S
One of the markets most powerful and versatile surface drills.
FEATURES AND BENEFITS
- Surface version (also available in underground version)\
- Made of steel
- Depth capacity: 1400m (4 600ft) N size
- Total weight: 17 011 lb (7 719kg)
SPECIFICATIONS
| Rotary head and chuck | |
|---|---|
| Holding capacity: | 38 000 lb (17 236 kg) |
| Spindle interior dimension: | 4.9" (124 mm) PWL Rod |
| Chuck operation: | Spring closed and hydraulically opened |
| Final drive: | HV 80-3 chain in an oil bath |
| Hydraulic Motor: | 160 cc variable |
| Transmission: | HI-LO 2-speed mechanic |
| Rotary Head Ratio: | 1:2.33 |
| Lubrication: | Pump pressurised, filter and cooler |
| Speed: | 0 to 1250 RPM |
