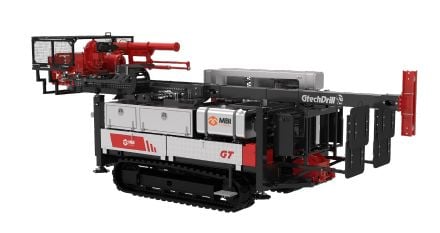

GT8 Gtechdrill - Geotechnical
Item Code: GT8
Geotechnical Drill Rig. Compact and sturdy design to harness the power of a drilling rig in a multifunction drill.
FEATURES AND BENEFITS
- Best-in-class torque - Max. speed combo
- Best-in-class for depth in NWL core
- Reliable and simple components for affordable maintenance and continued operations under all conditions
SPECIFICATIONS
Max. torque: | 9,303 ft-lbs (12,613 Nm) |
Max. rotation speed: | 965 rpm |
Push and pull capacity (standard mast) | 26,835 lbs (12,175 kg) |
Control panel with adjustable height | 20 in. (508 mm) hydraulically |
Open spindle head | 4.9 in (124mm) |
Head sliding clearance | 16 in. (406mm) |
Front-rear slide mast | 10 in. (406mm) |
Left-right side mast | 6 in. (152mm) |
NWL diamond core drilling capacity | 1,600ft. (500m) with deep coring winch option |
Rig weight on carrier | Between 19,250 lb & 22,000 lb (8,730 kg - 9,980 kg) |
