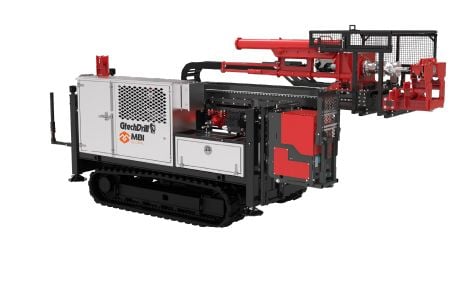

GT6 - Gtechdrill - Geotechnical
Item Code: GT6
Geotechnical Drill Rig. Compact and sturdy design to harness the power of a drilling rig in a multifunction drill.
FEATURES AND BENEFITS
- Best-in-class torque - Max. speed combo
- Reliable and simple components for affordable maintenance and continued operations under all conditions
- Weight may vary depending on options*
- Coring capacity varies with winch type*
SPECIFICATIONS
Max. torque: | 8,000 ft-lbs (10,846.45 Nm) |
Max. rotation speed: | 725 rpm |
Push and pull capacity (standard mast) | 26,000 lbs (11,700 kg) |
Control panel with adjustable height | 20in. (508 mm) hydraulically |
Head sliding clearance | 16 in. (406mm) |
Front-rear slide mast | 10 in. (406mm) |
Left-right side mast | 6 in. (152mm) |
NWL diamond core drilling capacity | 656ft. - 1600ft. (200-500m)* |
Drill weight on CAT 308 tracks fully equipped | 18,500 lbs. (8,074 kg) |
